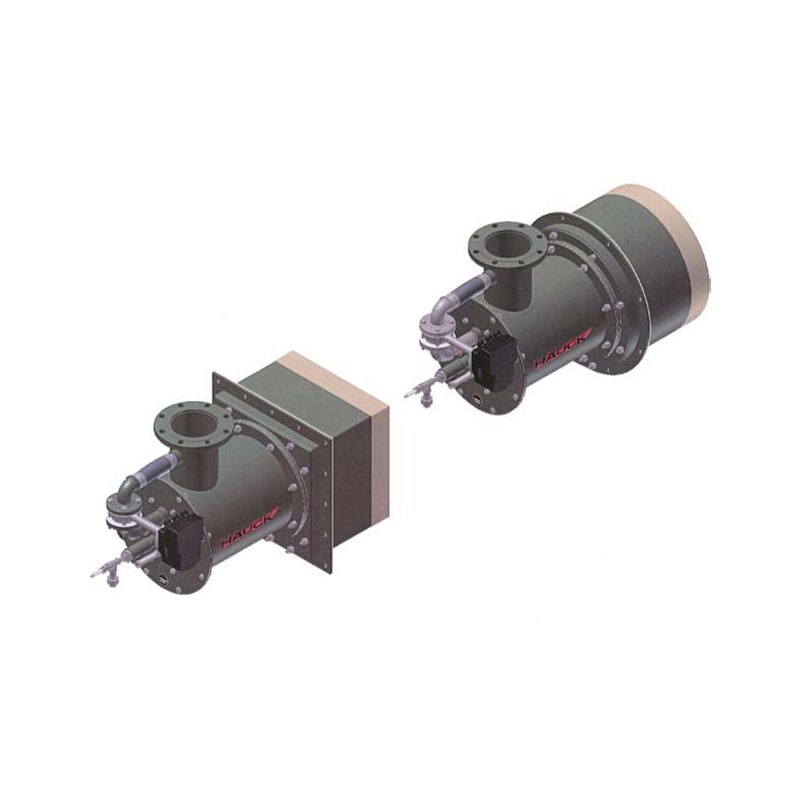

Hauck Burner Wall Hugger Invisiflame WHI
Wall Hugger Invisiflame WHI
Flat flame furnace burner with Ultra Low NOx emissions of 20 ppm or less.
Introduction:
The WHI Wall Hugger Invisiflame® burner is designed for applications that demand even heat distribution without flame impingement and ultra-low NOx emissions. Its unique design allows the flame to hug the wall closely, even at high turndown ratios, enabling the burner to be positioned near the load.
Target Verticals:
Metals
Pulp and Paper
Plastics
Incineration
Applications:
Reheating, tempering furnaces
Annealing
Melting furnaces
Industrial dryers
Hot air generators
Thermal incinerators
Forging
Features & Benefits:
Capacity range: 2000 to 6000 kBTU/h (580 to 1760 kW)
Ultra-low NOx emissions of 20 ppm or less
Low CO emissions, even during cold starts
8:1 on-ratio turndown capability
Flat flame profile throughout the firing range, ensuring even heat distribution and no flame impingement
Low excess air operation (5%) for maximum fuel efficiency
Compatible with cold or preheated air up to 900ºF (480ºC)
Direct spark or pilot ignition options
Stable operation at ratio in cold furnace conditions
Adjustable flange for easy installation
Single air and fuel connections for simplified setup
Available in round or square tile versions to suit different furnace configurations
