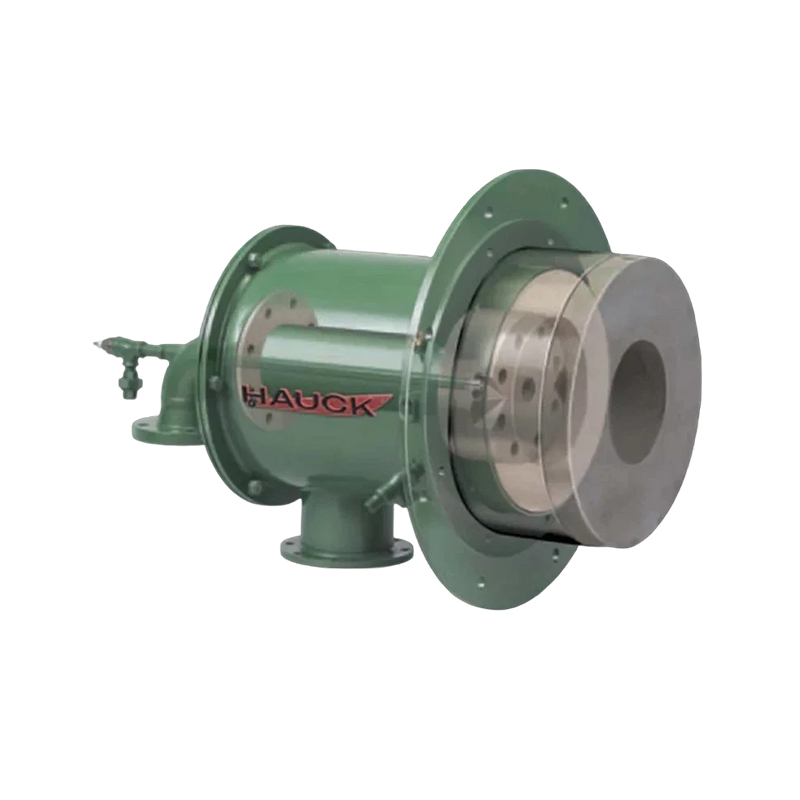

Hauck Burner BBG/BBC
BBG/BBC
All-purpose, high input, Multi-fuel combination burner for industrial applications.
Introduction:
The Beta Burner comes in Gas Only (BBG) or Combination Fuel (BBC). BBG is an all-purpose, high input industrial design burner with a high-quality, rugged steel design. It is engineered to operate across a broad range of air/fuel ratios and optimized to produce low emissions levels.
Target Verticals:
Metals
Fume incineration
Petroleum/Petrochem
Mining
Asphalt
Applications:
Thermal Fluid Heaters
Oxidizers
Rotary Kilns
Gypsum Kettles
Air Heaters
Incinerators
Industrial process air heating
Fluid bed and rotary drying
Furnaces and rotary kilns
Industrial material drying
Features & Benefits:
Capacity range: 2,900 kBTU/h to 109,000 kBTU/h (760 to 28,920 kW)
Fuels: Natural Gas
Alloy or refractory tile options for the burner components
On-ratio turndown varies with fuel type and excess air
Low air and fuel pressure requirements
Engineered to operate across a wide range of air/fuel ratios
UV or Ionization flame supervision
Insulated versions available for preheated air up to 900°F (480°C)
Low pressure atomization suitable for light oil or liquid propane
