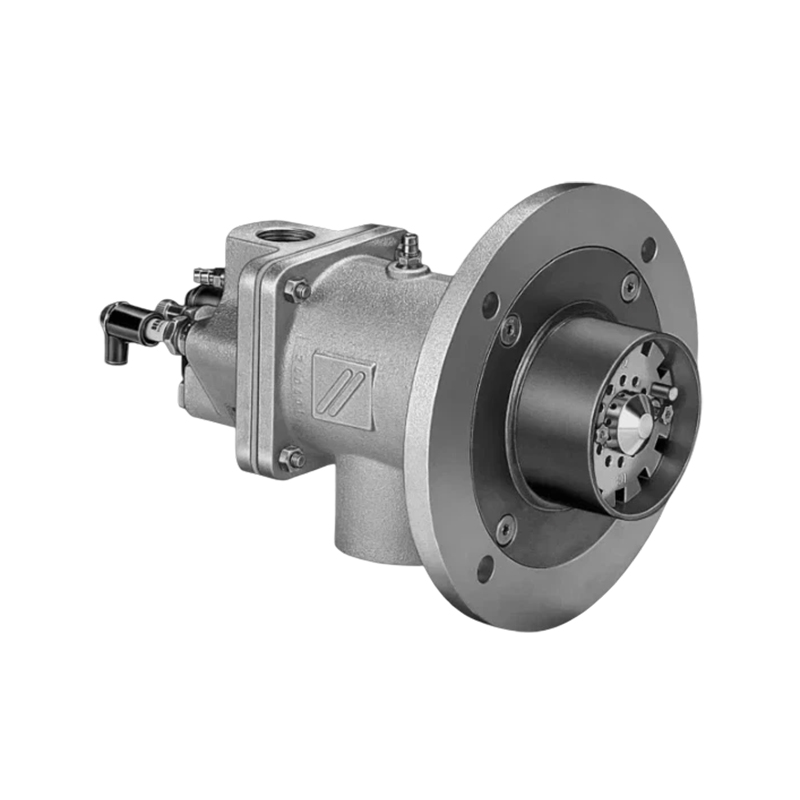

Hauck Burner BIO, BIOA, ZIO
BIO, BIOA, ZIO
Burners with housing made of cast steel (BIO), aluminium (BIOA) or sheet steel (ZIO), for combination with a burner quarl or with an extended steel burner tube.
Introduction:
These burners are available with housing options of cast steel (BIO), aluminium (BIOA), or sheet steel (ZIO), designed for integration with a burner quarl or an extended steel burner tube.
Target Verticals:
Metals
Pulp and Paper
Plastics
Incineration
Applications:
Reheating, tempering furnaces
Annealing
Melting furnaces
Industrial dryers
Hot air generators
Thermal incinerators
Forging
Features & Benefits:
Burner size range: 50 to 200
Capacity range: 40 to 1000 kW
Suitable for: cold air, hot air, flat flame, and high-temperature applications
Fuel Type compatibility: natural gas, coke oven gas, town gas, liquefied gases, as well as biologically produced methane or low calorific value gases upon special request
Burner length range: 50 to 1000 mm
Gas connection type: threaded
Air connection type: threaded or flanged (BIOA features tube connection)
Available Versions: burner with integrated ignition lance, housing with internal insulation for enhanced performance and safety
