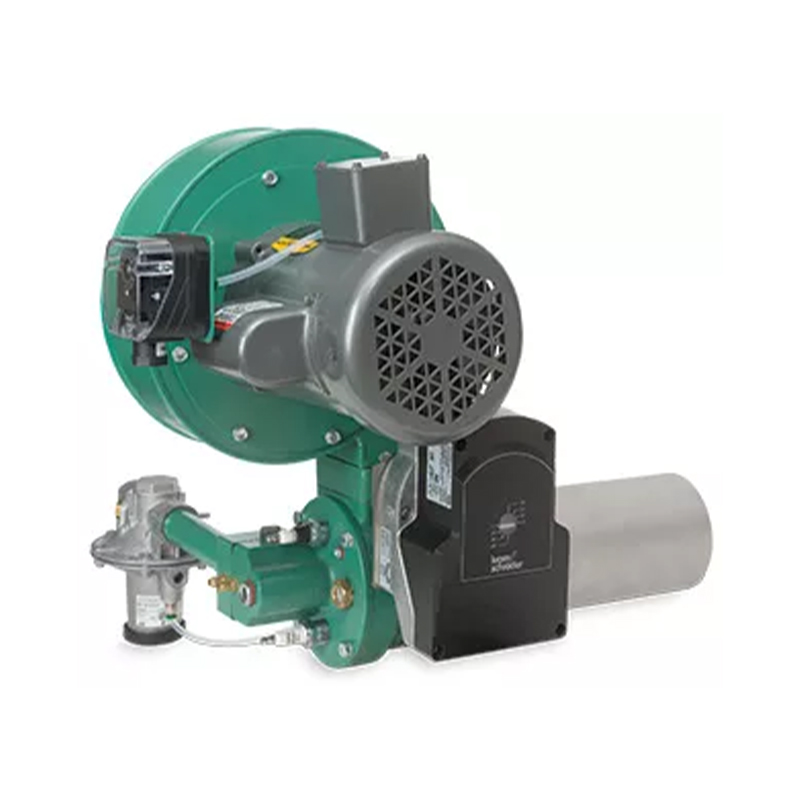

Eclipse Burner RatioMatic
RatioMatic
Simple, Robust, gun style air heating burner that can be applied across a variety of different industries.
It comes packaged for quick installation and startup.
Introduction:
RatioMatic Burners Are Safe and Simple to Operate. Simply put, the low emissions RatioMatic burner is the world's most reliable air-heating burner. With a design that takes the guesswork out of start-up and adjustment, the RatioMatic burner is both safe and easy to use. The burner features a ratio regulator that automatically compensates for changes in operating conditions without requiring an additional gas adjustment, a direct-drive air butterfly that eliminates linkage which can slip or jam during operation, and it is ideal for emission-sensitive processes due to Low NOx, CO and aldehydes. Overall, with the RatioMatic burner Eclipse engineers have created an air-heating burner that offers robust and reliable performance.
Target Verticals:
Food and Beverage
Building Materials
Automotive Paint Finishing
General Finishing
Petroleum/Petrochem
Textiles
Metals Finishing
Applications:
Industrial Drying & Curing Ovens
Industrial Baking Ovens
Thermal Fluid Heaters
Water Bath Vaporizers
Automotive Paint Drying Ovens
Indirect Heaters (e.g. RHT)
Incineration
Features & Benefits:
RatioMatic burner design takes the guesswork out of start-up and adjustment
Ratio regulator automatically compensates for changes in operating conditions
Turndown range of up to 90:1 depending on the burner size and chamber conditions
Direct-drive air butterfly eliminates linkages which can slip or jam during operation
Fast-mixing nozzle provides clean stable flame at all firing rates and releases heat into the chamber, not the oven wall
Ideal for emission-sensitive processes due to low NOx, CO and aldehydes
Capacities from 500,000 to 30,000,000 Btu/hr
